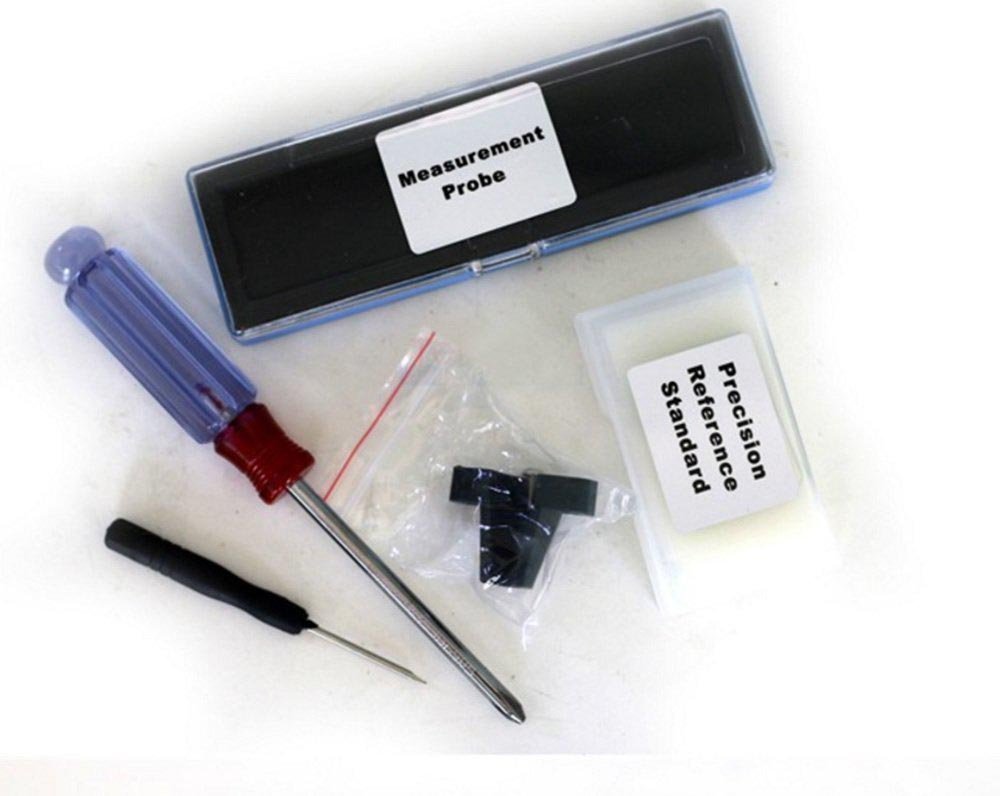

Surface Roughness Tester Profile Gauge Surftest Profilometer with Ra and Rz Tester Diamond Probe 0.05~10um Ra 100um Rz

Features * Be compatible with four standards of ISO, DIN, ANSI and JIS. * Multiple parameter measurement: Ra, Rz. * Highly sophisticated inductance sensor. * Built-in lithium ion rechargeable battery and control circuit with high capacity. * Small in size, light in weight and easy to use. * Manual or automatic shut down. * Metric /Imperial Conversion. * Use USB/RS-232 data output to connect with PC. * Provide Bluetooth data output choice. Specification Standards :GB/T6062,ISO4287,DIN4768,JIS B,ANSI46.1 Parameters :Ra,Rz Measuring Range : Ra:0.05~10.00µm Rz:0.020~100.0µm /1.000~400.0µinch /0.780~4000µinch Accuracy: <10% Fluctuation of Display Value :<6% Resolution :0.001/0.01/0.1 Sensor : Radius of Probe Pin :10µm Material of Probe Pin :Diamond Measurement Force of Probe :16mN(1.6gf) Probe Angle :90º Vertical Radius of Guiding Head :48 mm Maximum Driving Stroke :17.5mm/0.7inch Cutoff length(l): 0.25mm,0.8mm,2.5mm Driving Speed : Sampling: When Length=0.25mm,Vt=0.135 mm/s When Length=0.8mm,Vt=0.5mm/s When Length=2.5mm,Vt=1mm/s Returning :Vt=1mm/s Profile Digital Filter :RC,PC-RC,GAUSS,D-P Evaluation Length :1~5L Optional Data Memorize :------- Operating Conditions: Temp:0~50ºC Humidity:<80%RH Power Supply: Built -in Rechargeable Li-ion Battery Dimensions :140x52x48 mm Weight :420g Standard Accessories : Main Unit Standard Sample Plate SSP-100 Standard Sensor SSP-100 Small Screwdriver Power Adapter Carrying Case ( B09 ) Operation Manual Optinal Accessories: RS-232C Cable with Software Bluetooth Adapter with Software Extension Rod SER-150 Groove Stylus SRP-110 Curvature Probe SRP-120 Measurement Stand SRS-1

• Standards : GB/T6062,ISO4287,DIN4768,JIS B,ANSI46.1
• Parameters : Ra,Rz
• Range : Ra:0.05~10.00µm Rz:0.020~100.0µm /1.000~400.0µinch /0.780~4000µinch
• Accuracy : <10% Fluctuation of Display Value : <6%
• Resolution : 0.001/0.01/0.1
