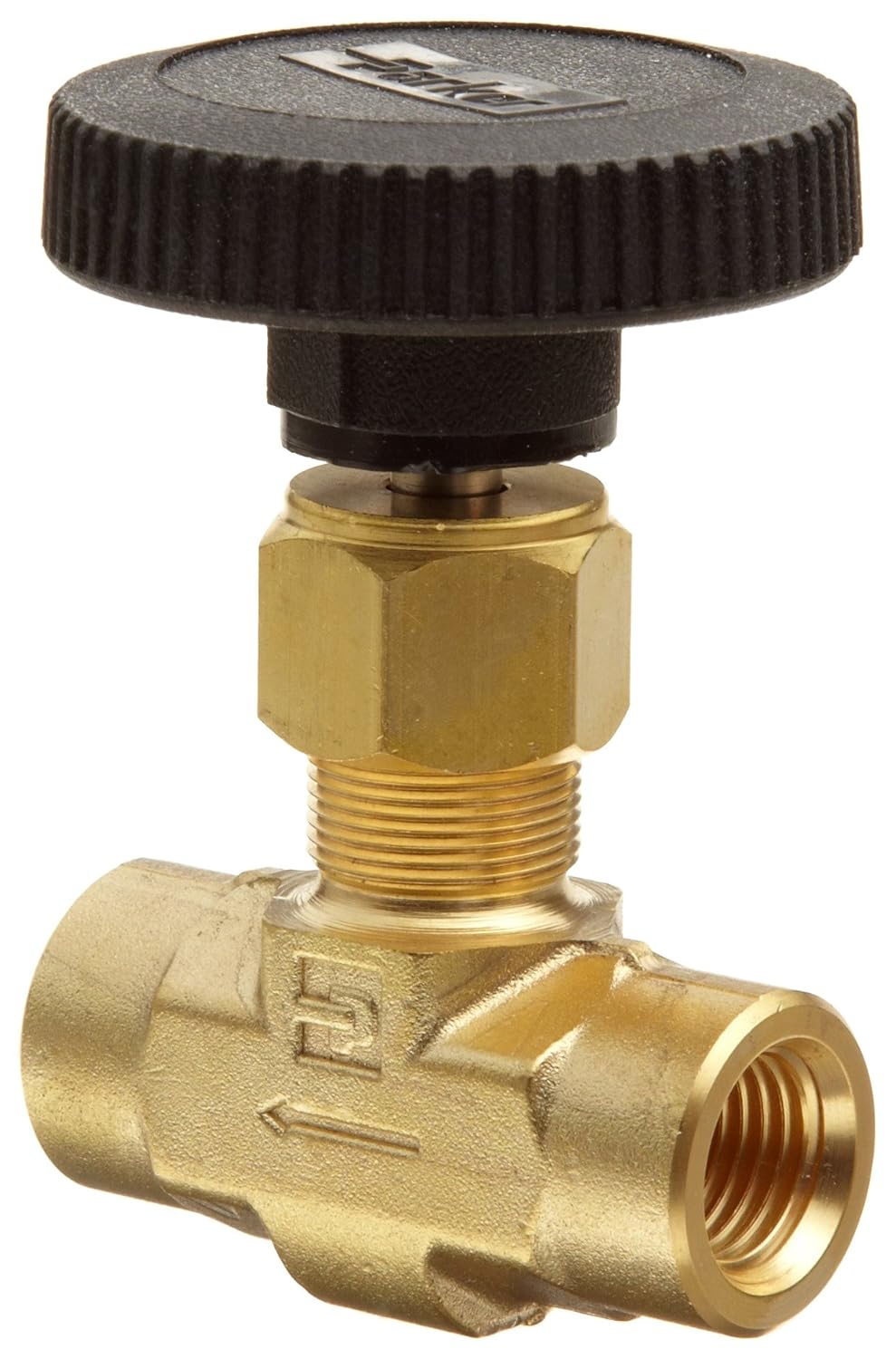

Parker Brass Inline Process Needle Valve with PTFE Stem Seal, 1/4" NPT Female Inlet/Outlet Port, 3000 psi
Product details
| Management number | 211102699 | Release Date | 2026/04/04 | List Price | $52.75 | Model Number | 211102699 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Parker V Series Needle Valves are designed for positive leak tight shut-off and regulation of fluids in process, power, and instrumentation applications. With a wide variety of port sizes and styles, temperature capabilities ranging from -65 degree F to 450 degree F (-54 degree C to 232 degree C) and pressure 5000 psig (345 bar), V Series Needle Valves provide the user with the utmost in flexibility when designing miniaturized tubing or piping systems. Inline configuration. Flow rate Cv is 0.55. 1/4" Inlet size. Double ferrule compression inlet connection. 1/4" Outlet size. Double ferrule compression outlet connection. Regulating stem type. PTFE (polytetrafluoroethylene) stem seal. Stainless steel trim. Stainless steel body material. Manual operated. 0.228" Orifice. 100 Percent factory tested.
- Differential hardness between the strain hardened stem and cold formed body threads provides improved cycle life
- Inline patterns
- Wide variety of US Customary and SI ports
- Panel mountable
- Optional color coded handles
| Size | 0.25 Inch |
|---|---|
| Brand Name | Parker |
| Unit Count | 1.0 Count |
| Valve Type | Needle Valve |
| Thread Size | 1/4 inch |
| Thread Type | Compression |
| Manufacturer | Parker |
| Model Number | 4F-V6LN-B |
| Material Type | Brass |
| Connector Type | Threaded |
| Exterior Finish | 1/4" |
| Number of Ports | 2 |
| Inlet Connection Size | 0.25 Inches |
| Inlet Connection Type | National Pipe Tapered |
| Outlet Connection Size | 0.25 Inches |
| Outlet Connection Type | FNPT |
