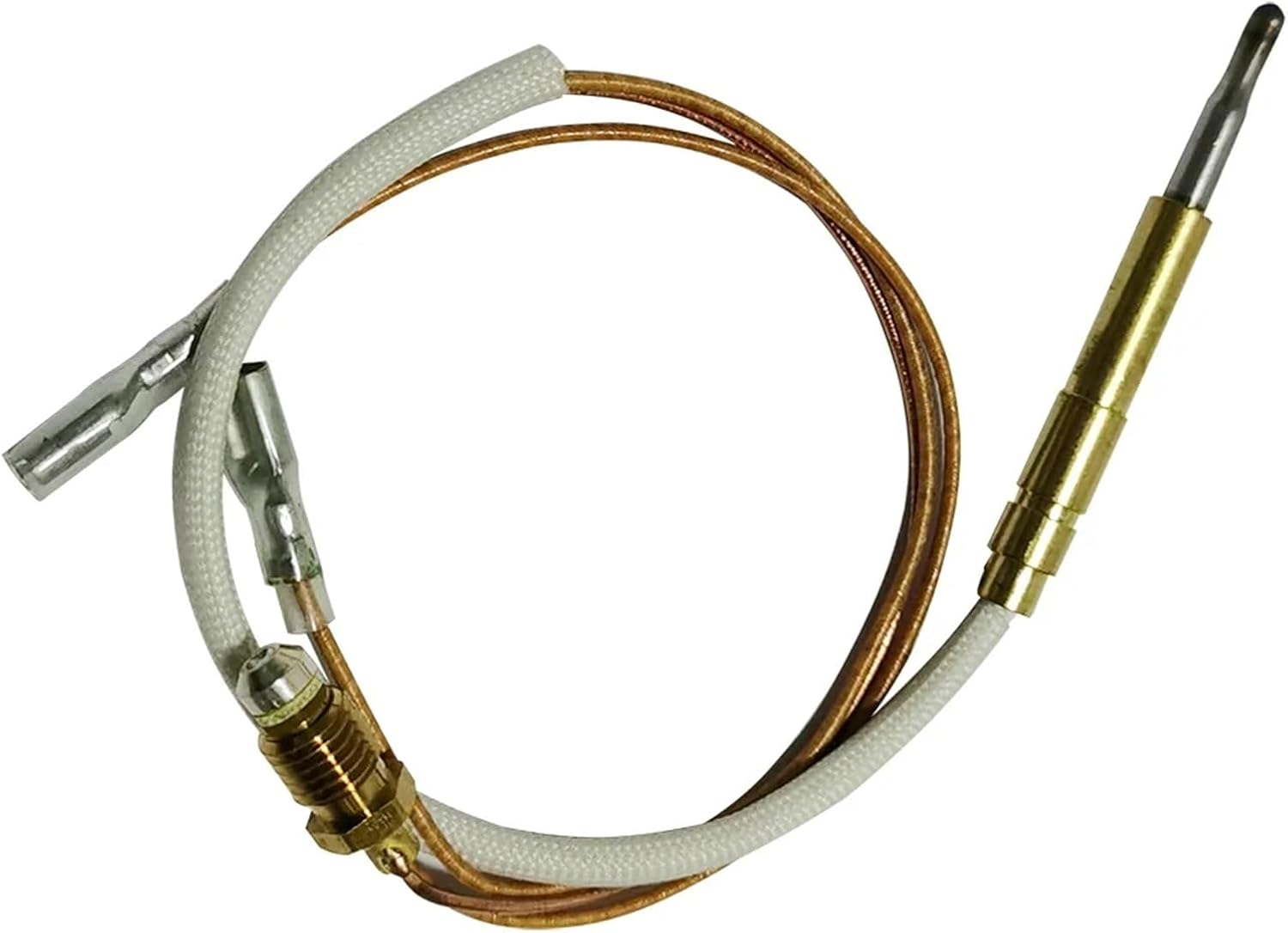

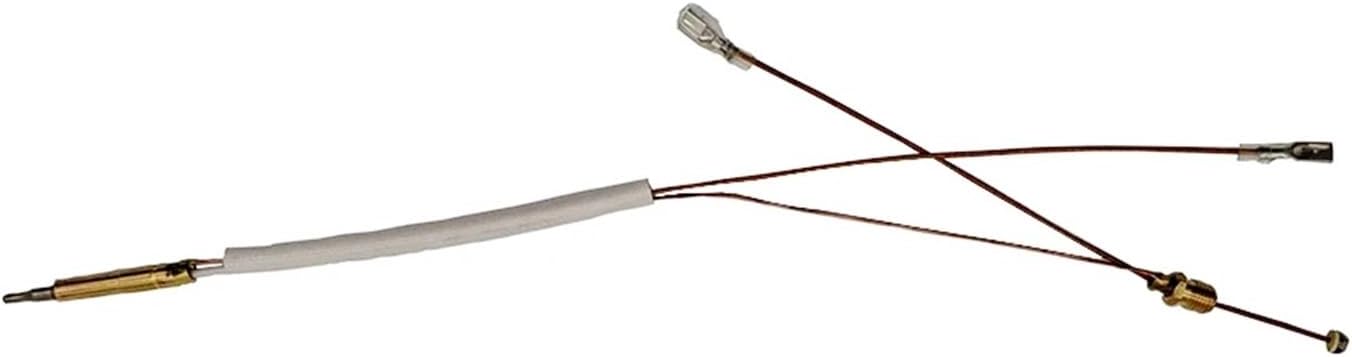

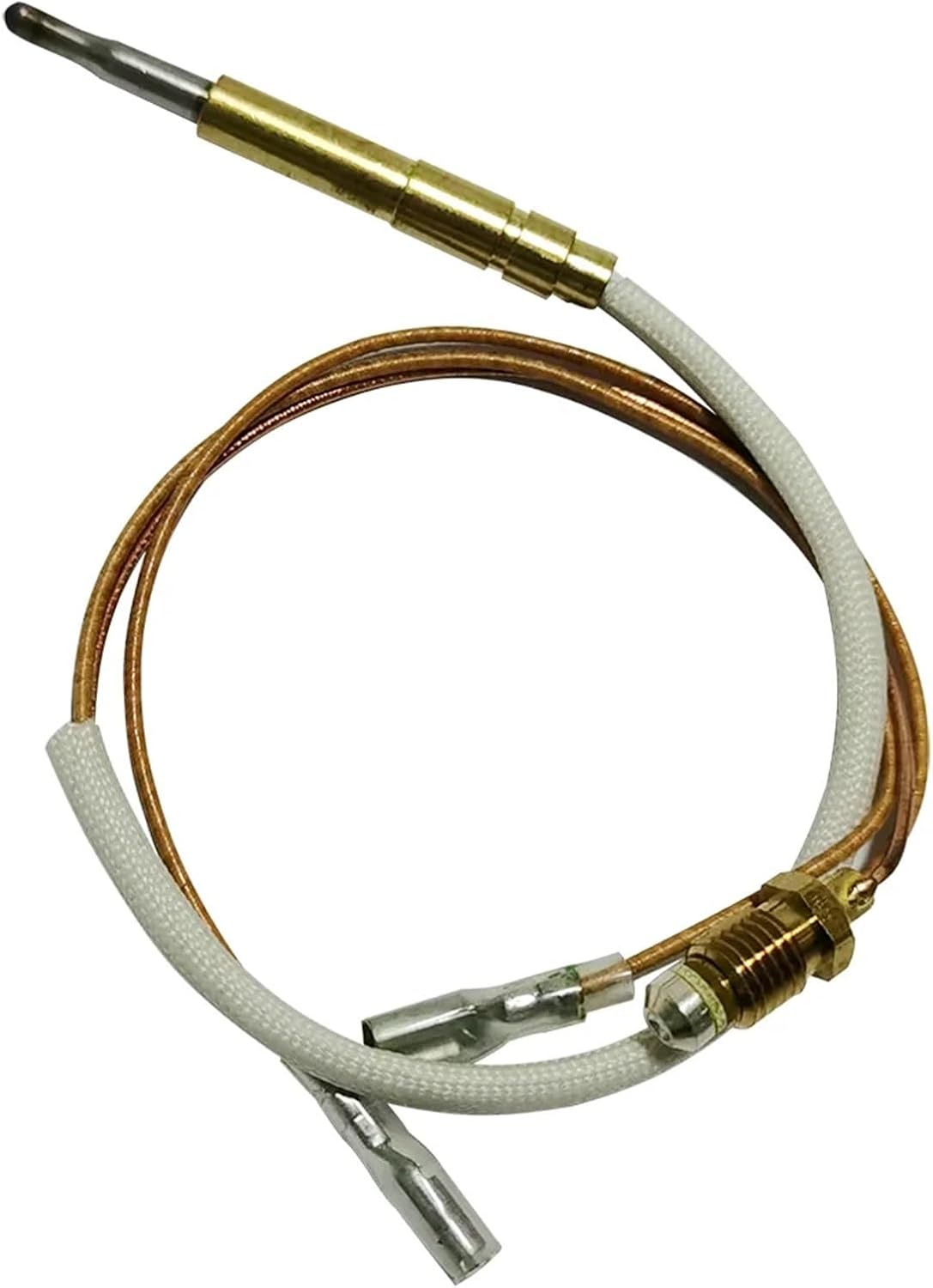

Outdoor Umbrella/Patio Heater Replacement Flameout Protection Device Thermocouple Wire Sensor (Dump Switch Connections)

thermocoupleOutdoor Umbrella Heater / Patio Heater Replacement Flameout Protection Device Thermocouple Wire Sensor (Dump Switch Connections)Product description:End Nuts for gas valve 8mm, Two Flat square terminals width 4.8 mm for tilt switchExtend total length 350mm for patio heaterThermocouple head is common groove type fixed by clipsHigh temperature resistance protection sleeveTerminal connect anti-down switchOperation Instructions :1). install the thermocouple tip on a board and use two nuts to fix it's location2). Keep the tip at around 5mm distance from the burner hole in right height.3). the thermocouple nut M8 on the valve end tightly (Check if your valve end thread if 8mm before you buy)4). Connect two flat terminals well with the current tilt switch terminals.5). Open gas and push your valve around 5-10s till the thermocouple head is heated enough.6). Release your hand and it work properlyIf when you release hand, gas valve shut off again, Please checka. If your thermocouple is always be heated on flameb. If the thermocouple end is well connect with valvec. If the terminals connect tilt switch well.==========High-concerned chemical : NoneMaterial : MetalMetal Type : Red CopperModel Number : AI-RDO001AOrigin : Type : Cookware PartsOutdoor Umbrella Heater Thermocouple : Patio Heater ReplacementFlameout Protection Device : Thermocouple Wire Sensor
