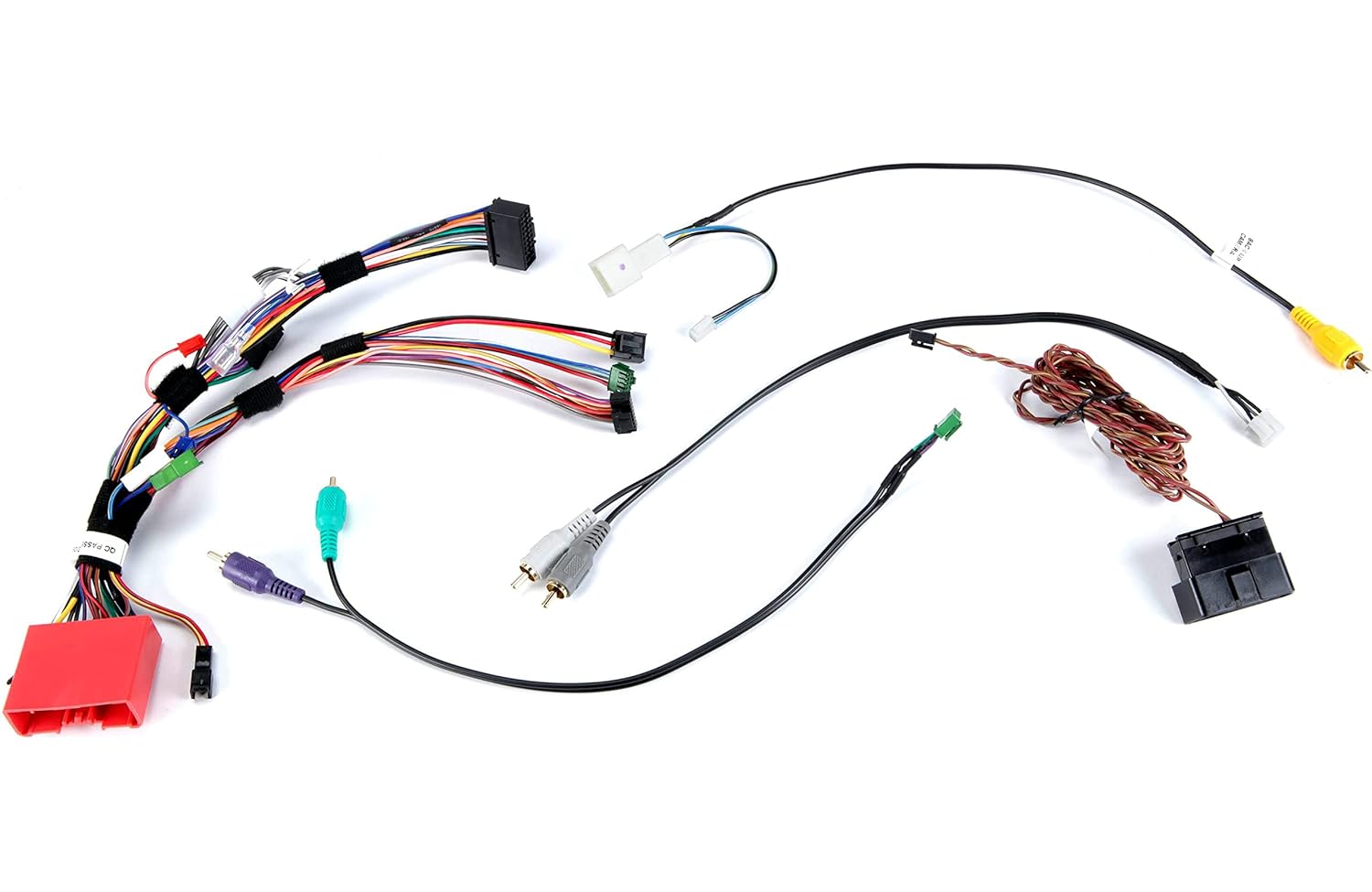

Idatalink Maestro Compatible with Mazda Vehicles (2006-2018) HRN-HRR-MA1 Plug & Play Installation Harness (ADS-MRR or ADS-MRR2 Module Required)
$69.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by wafi-egypt.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$69.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by wafi-egypt.com
Free 30-day returns Details
Product details
| Management number | 209178684 | Release Date | 2026/03/29 | List Price | $28.00 | Model Number | 209178684 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- iDatalink Maestro HRN-HRR-MA1 - Connect an iDatalink-compatible car stereo and retain steering wheel audio controls in select compatible 2006-18 Mazda vehicles. (ADS-MRR or ADS-MRR2 Module Required)
- iDatalink's HRN-HRR-MA1 installation harness simplifies the installation of the Maestro ADS-MRR or ADS-MRR2 Car Radio Replacement Interface module (sold separately) in select compatible Mazda vehicles when replacing your factory radio.
- If you're buying a compatible iDatalink-ready car stereo, you'll also be able to display gauges and vehicle info on your receiver's screen, plus read and reset engine codes. You'll also keep your side/front/lanewatch cameras if present (receiver must have 2nd composite video camera input).
- The HRN-HRR-MA2 adapter must be used with the iDatalink Maestro ADS-MRR or ADS-MRR2 module to connect a new car stereo to your vehicle. This harness also features an in-line head-unit connector harness, which will plug into their new "Head-unit direct" harnesses for select radio brands, which eliminate the need to splice any wires. If you're installing a radio that doesn't work with a "Head-unit direct" harness, you simply cut off the plug and connect the wires to the harness included with your new radio.
- Allows installation of a new receiver with iDatalink port in select compatible Mazda vehicles (also requires the Maestro ADS-MRR or ADS-MRR2 module)
- INSTALLATION NOTE: This HRN-HRR Plug & Play T-Harness REQUIRES an Idatalink Maestro Interface Module (ADS-MRR or ADS-MRR2) and the corresponding Idatalink Maestro Car Stereo Head-Unit ACC-HU-ALP1 (Alpine), ACC-HU-PIO1 (Pioneer), ACC-HU-SON1 (S0NY), ACC-HU-KEN1 (KENWO0D/JVC with 22-Pin Connector), ACC-HU-KEN2 (KENWO0D/JVC with 16-Pin Connector), ACC-HU-KEN3 (2024 & Newer KENWO0D/JVC with 22-Pin Connector), ACC-HU-BOS1 (BOSS Radio) or the ACC-HU-JEN1 (Jensen) Installation T-Harness. Each Sold separately. These adapters allows you to connect select car stereos to compatible iDatalink T-harnesses.
- (ADS-MRR: Vehicle Coverage: 30 Makes - Models: 4318 - Years: 2002+) - (ADS-MRR2: Vehicle Coverage: 30 Makes - Models: 4582 - Years: 2002+ with 3 Programmable Outputs)
| UPC | 627780004365 |
|---|---|
| Brand Name | Idatalink |
| Cable Type | USB |
| Item Weight | 0.4 Pounds |
| Part Number | HRN-HRR-MA1 |
| Manufacturer | Idatalink |
| Material Type | Polyvinyl Chloride (PVC) |
| Connector Type | Usb |
| Item Dimensions | 8 x 5 x 1.5 inches |
| Included Components | Idatalink Maestro HRN-HRR-MA1 Plug & Play Installation Harness |
