Cable Tracker, LAN Display Meter Network Tool with LED Lights and LCD Display, 3 Hunting Modes, Suitable for Cable Organizing, Network Maintenance Organizing, Phone Line Testing

Line testApplicable network cable: CAT5, CAT6Cable sequence and fault test: yesNetwork cable shielding/unshielding: can be tested to distinguish (1 to 1 pair of wires)Short circuit prompt: yes1 to 1 pair of wires: main interface + remote interface 1 to 1 pair of wiresSwitch wiring: main interface + direct connection to the switchLine length: 600mlength testTest line type: CAT5, CAT6Open line length measurement minimum length: 2.5 metersOpen line length measurement maximum length: 200 metersGeneral line length measurement accuracy: 1.6mThe minimum analytical unit for line length measurement: 0.1 m/eng/ydShort-circuit point distance prompt: detect cable short-circuit fault distanceHunt test:Applicable network cable: CAT5, CAT6Output signal voltage: 9 soil 1.0Vp-p (audio file)Probe distance 0cm Volume (db): >105dbProbe distance 30cm Volume (db): greater than 80dbAudio transmission frequency: 130KHZTone: 1 toneOrdinary hunt: yesAnti-interference hunting: YesPOE hunting: YesAudio maximum transmission distance: 600mTest range: DC560V non-standard/standard POE switch

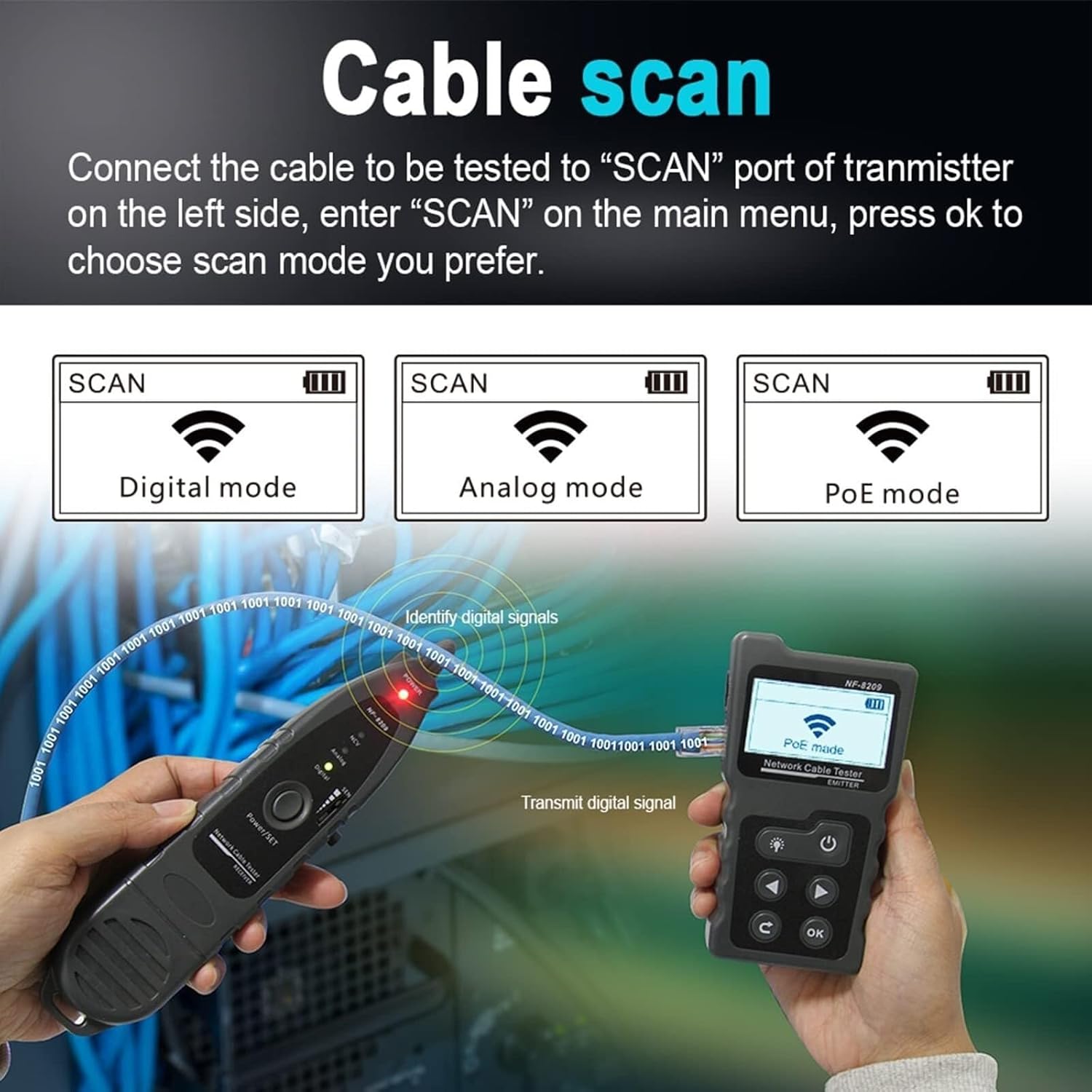

• Cable tracking has 3 hunting modes: nti-jamming mode/POE mode/common mode, you can quickly and effectively find the target cable in a large number of cables and noisy environments. And this function can be used in telephone system, computer network
• PoE Test: The PoE test can check the cable mapping polarity and voltage of the PoE network switch, withstand 60VDC. Automatically detect and switch between 10M/100M/1000M mode. Includes cable tracing, short circuit testing, interrupted circuit testing, and more
• Cable Length Test: This cable tester can quickly measure the length of cables, not only network cables, but also metal cables with two or more cores, including telephone wires and BNC cables. The range of the cable tester is 600M
• Adjustable Sensitivity: You can turn down the sound gear when the received signal is strong. Instead, you can increase the speed of sound when the reception signal is weak. This circuit finder features a large backlit LCD display that is easy to read
• Applicable: This meter is a practical tool for laboratory, factory, telecommunication engineering, radio amateur network installers and technicians, with a flexible and multifunctional interface, this network cable tester and digital multimeter is what you need
