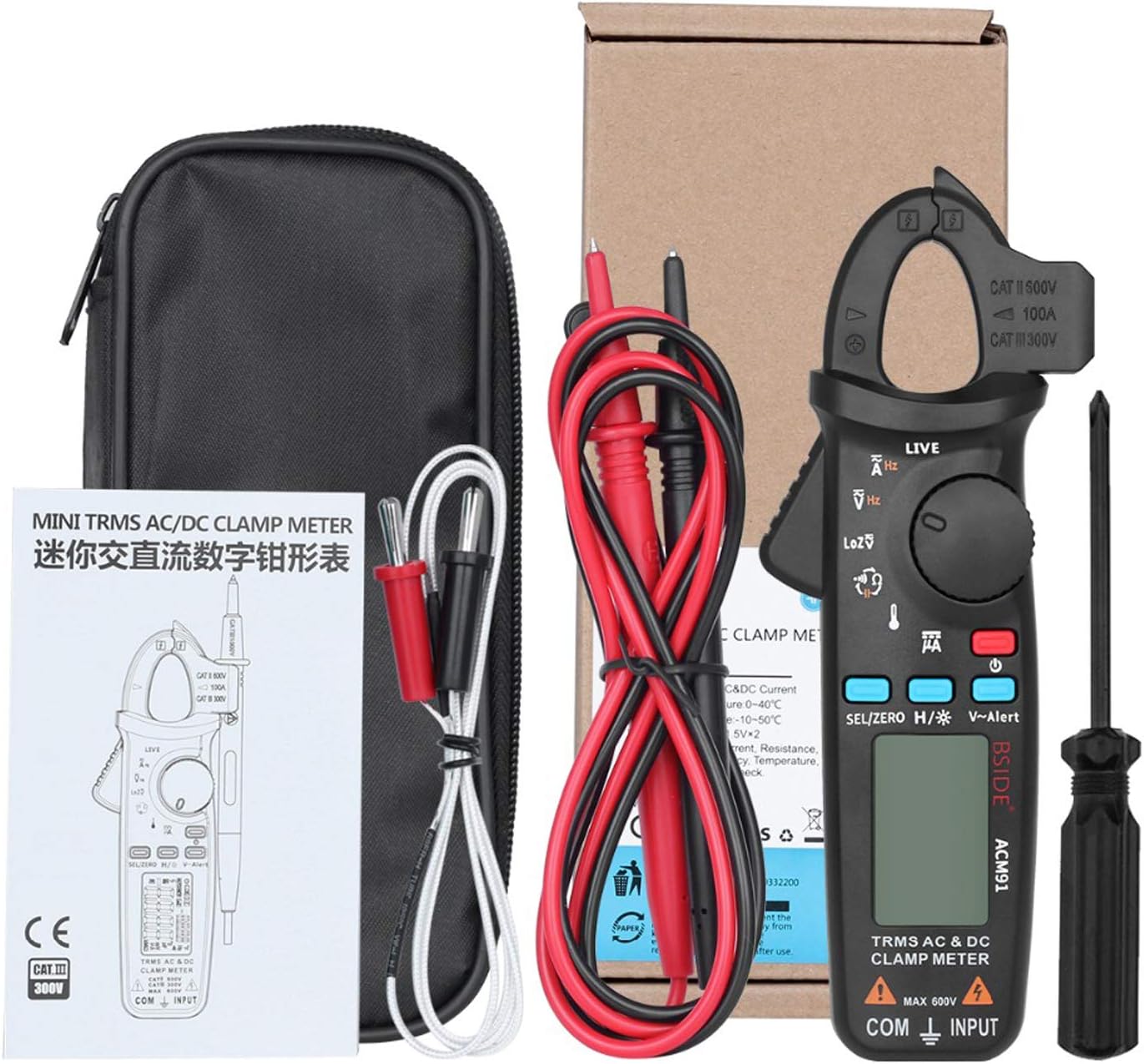

ACM91 Clamp Multimeter Digital AC DC Current Clamp Meter True RMS Auto Range 6000 Counts 100 amp Mini Meter With Temperature Capacitance NCV Measure LoZ Volts

Features: Measure both DC current and AC current (minimum 1mA by jaws) Measure microamps μA (minimum 0.1μA by terminals)Measure AC and DC voltage Measure resistance, continuity and capacitance, frequency Low impedance voltage measurement Measure temperature Live wire check function V-alert measurement Clamp on frequency function Auto range, Data hold, Auto power off, Back light Conform to the IEC-61010-1, IEC-61010-2-030, IEC-61010-2-032, IEC-61010-2-033 standards Over-voltage protection class CAT III 300V, CAT II 600V, pollution degree II Specifications: Display: 6000 counts DC current: 6A/60A/100A 0.001A/0.01A/0.1A ±(3.0%+5counts) DC current(uA):0-200uA 0.1uA ±(0.8%+5counts) AC current: 6A/60A/100A 0.001A/0.01A/0.1A ±(2.5%+5counts) DC voltage: 6V/60V/600V 0.001V/0.01V/0.1V ±(1.0%+3counts) AC voltage: 6V/60V/600V 0.001V/0.01V/0.1V ±(1.0%+3counts) Low impedance LOZ: Max 600V Resolution 0.1V Resistance: 600/6k/60k/600k/6M ohm 0.1/0.001K/0.01K/0.1K/0.001M ohm ±(1.0%+3counts) 60Mohm 0.01Mohm ±(1.2%+20counts) Capacitance: 600uF/6000uF 0.1uF/1uF ±(4.0%+3counts) Frequency: 60Hz/1000Hz 0.1Hz/1Hz ±(1.0%+5counts) Frequency（by jaws): 60Hz/1000Hz 0.1Hz/1Hz ±(1.0%+5counts) Buzzer: If the resistance is less than 30Ω, the continuity beeper sounds. Temperature: -20°C~500°C 1°C/2°F (2.0%+2counts) Jaw Capacity: 20mm Power: 1.5V (AAA) x 2 (not included) Size: 179mm x 67mm x 36 mm Weight: 137g Package Includes: 1 x Digital Clamp Meter 1 x Test Leads 1 x Thermocouple 1 x User Manual 1 x Carrying Case The batteries are not included in the package due to Aviation Security Check. Sorry for any inconvenience caused.

• [Multipurpose True-RMS AC DC Amp Clamp Meter]: The auto range clamp multimeter can measure AC/DC current, AC/DC voltage, resistance, capacitance, temperature, frequency(Hz) and continuity. It is an ideal troubleshooting meter to help you solve automotive or household electrical problems quickly and safely.
• [1mA Resolution]: 1mA resolution when measures AC/DC current by clamp.

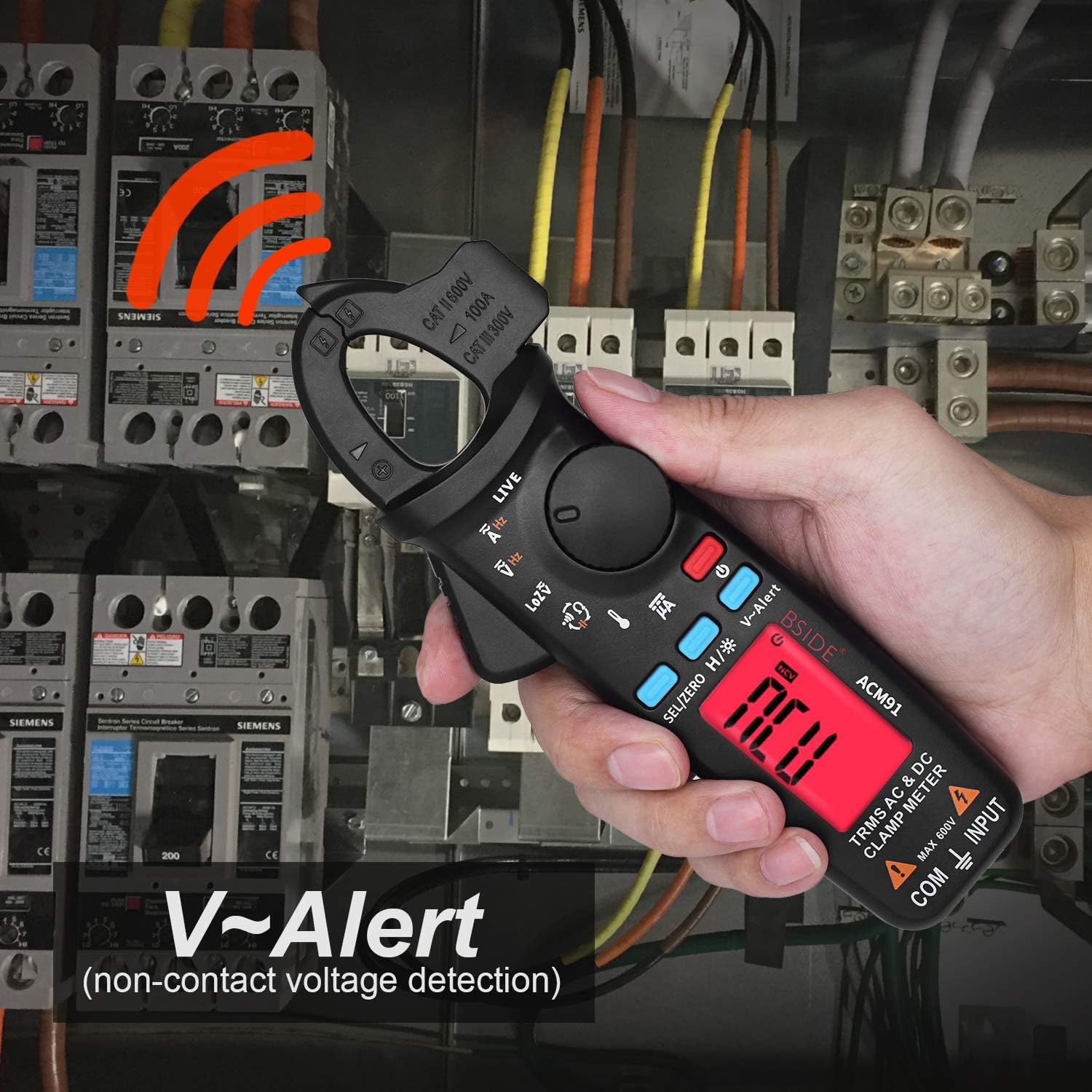

• [NCV & Live Wire Test Function] Push the V-Alert (NCV) button to activate non-contact voltage detection under any function gear. If AC voltage detected, the LCD backlight will shine red light and the beeper will sound.
• [Low Impedance Mode]: Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages.
• [Additional features]: Pocket size, High resolution, LCD backlit , Data hold, Auto power off
