AC 230V 16A Automatic Transfer Switch, IP67 Waterproof ATS for Inverter & Main Power, Compact Auto Transfer Switch for Boats, RVs, and Motorhomes – Indoor & Outdoor Use (4.9”x4.9”x3.2”)
Product details
| Management number | 210751749 | Release Date | 2026/04/02 | List Price | $27.60 | Model Number | 210751749 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

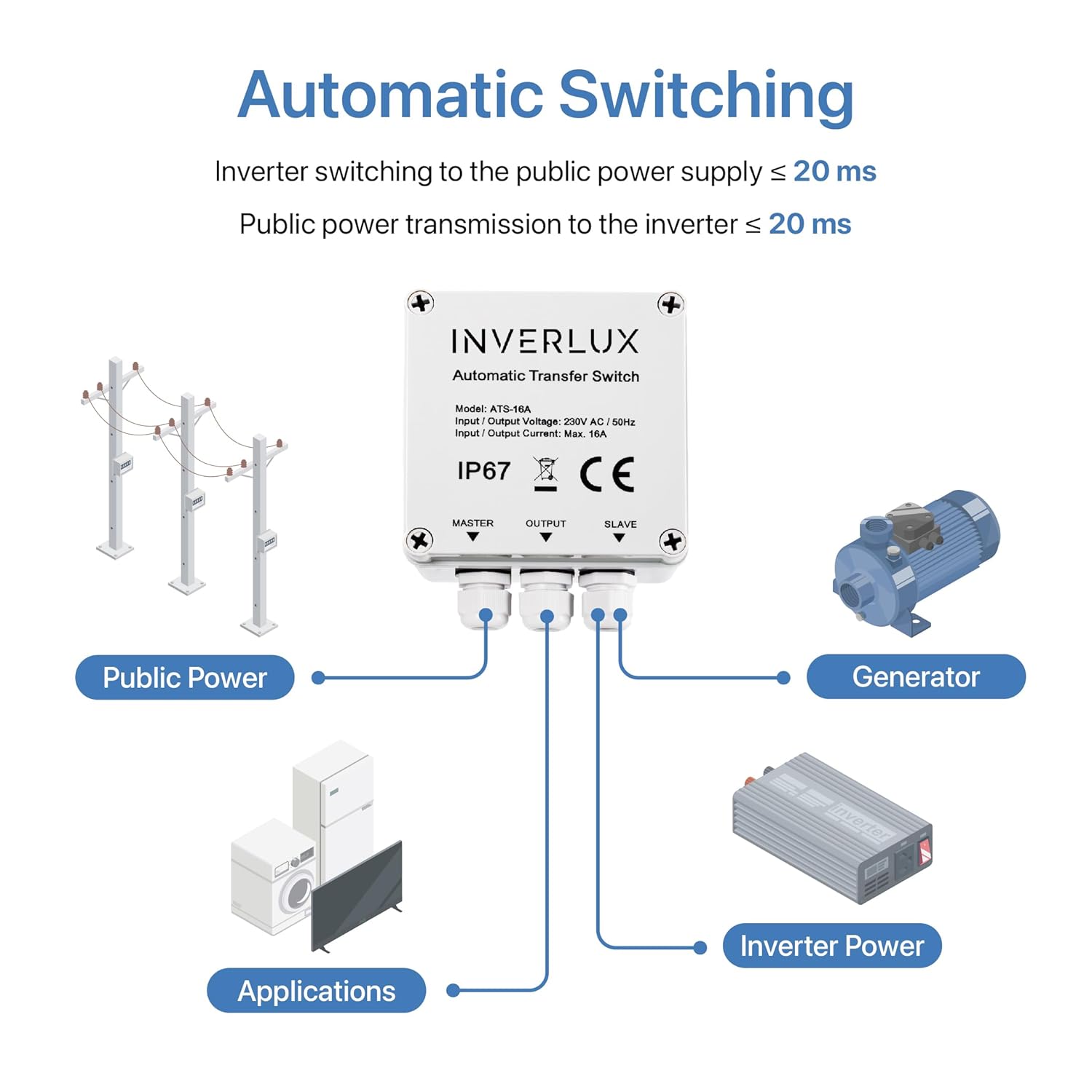

Inverlux’s Automatic AC Transfer Switch is designed to ensure the continuous delivery of electrical power from one of two AC sources (e.g. shore power grid and inverter) to a connected sensitive load (lights, motors, computers, etc.). Only when the voltage at the master input is no longer available (e.g. due to a power failure) is the slave input switched through to the consumer output. The consumers continue to be supplied with almost no interruptions. When the voltage at the master input is available again, it is switched through to the consumer output again. With its switching time of 20 milliseconds, the use of grid switching in conjunction with an inverter is almost an uninterruptible power supply (UPS). With IP67 premium waterproof housing, it is suitable for indoor and outdoor use. The switching capacity is 16A, which corresponds to 3,680W. Of course, it is also possible to use an inverter as a MASTER voltage source (e.g. with a solar or wind energy generator) and to use a generator or the public power grid as a SLAVE voltage source.
- Reliable Power Switching – Automatically and seamlessly switches between inverter and mains power to ensure an uninterrupted power supply for your devices.
- IP67 Waterproof & Rugged Design – Fully sealed, weatherproof enclosure protects against dust, rain, and harsh environments—ideal for boats, RVs, motorhomes, and outdoor setups.
- Compact & Space-Saving – Ultra-compact design (4.9" x 4.9" x 3.2") fits easily into tight installation areas, making it perfect for mobile or off-grid systems.
- High 16A Capacity at 230V – Supports up to 16 Amps at 230V, providing stable and safe power handling for a wide range of electrical appliances and tools.
- Quick Installation & Wide Compatibility – Designed for easy indoor and outdoor installation. Perfect for solar power systems, off-grid cabins, camper vans, and emergency backup setups.
- Designed in California, Made in Taiwan– Combining innovative U.S. design with precision Taiwanese manufacturing for reliable performance and quality.
- ⚠️ Important Note – DO NOT USE IN 120VAC/60HZ SETUP. For 230V AC systems only. Not compatible with 120V/60Hz setups.
| Color | Onecolor |
|---|---|
| Model | ATS-16A |
| Wattage | 3680 watts |
| Terminal | Screw |
| Brand Name | INVERLUX |
| Unit Count | 14.9914 Ounce |
| Item Weight | 0.43 Kilograms |
| Switch Type | Bipolar Transistor |
| Circuit Type | 2-way |
| Contact Type | Normally Closed |
| Manufacturer | Inverlux |
| Actuator Type | Rotary |
| Material Type | Acrylonitrile Butadiene Styrene |
| Mounting Type | Surface Mount |
| Connector Type | Clamp |
| Current Rating | 16 Amps |
| Operation Mode | ON-ON |
| Item Dimensions | 4.92 x 4.92 x 3.15 inches |
| Number of Items | 1 |
| Contact Material | Plastic |
| Operating Voltage | 240 Volts (AC) |
| Specification Met | CE, RoHS, UL |
| Number of Positions | 6 |
| Connectivity Protocol | X-10 |
| Upper Temperature Rating | 40 Degrees Celsius |
| International Protection Rating | IP67 |
