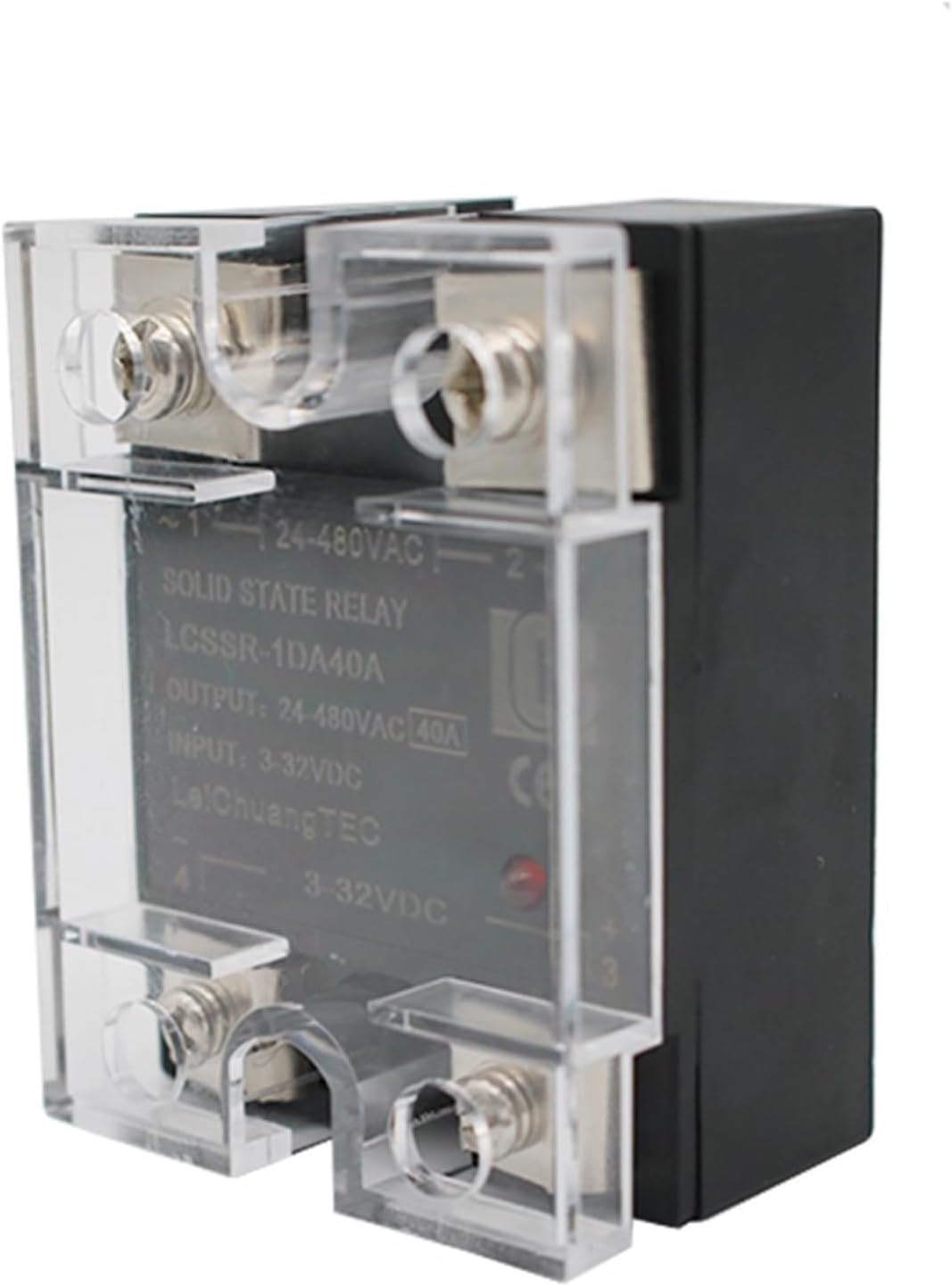

10A-120A SSR Single Phase Solid State Relay DC Control DA 3-32VDC to 24-480VAC(25A)
Product details
| Management number | 211060842 | Release Date | 2026/04/04 | List Price | $12.93 | Model Number | 211060842 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
relayRelayLeiChuang TEC single phase solid state relay DC to DA 10A-120AControl DC to ACLoad Current 10A-120AControl Voltage 3-32VDCMax Input Current 40mAMust Operation Voltage 3VDCMust Release Voltage 2VDCLoad Voltage 24-280VDCPeak Voltage 800VOperation Temperature -30 to 80Max off-state leakage current2mAMax on-state voltage drop 1VDielectric strength 2500VCertificates CEDimensions(mm) 57 x 44 x 30Weight 100gFeatures1.MOSFET output.2.With LED indicator.3.Low on-state resistance.4.Photo isoation.Precautions1.Must add suppression circuit for inductive load.2.Apply heat-radiation silicon grease of a heat conductive sheet between the SSR and heat sink.3.Tighten the ssr terminal screws properly.4.Please do not use the relay beyond the descriptions in the data sheet.Choose currentCurrent of Equipment/Ratio = Current of SSRPS: The Ratio depend on the kind of your loading equipment.Resistive load :50% Inductive load:20% Capacitive load:10%
- relay
- Relay
- 10A-120A SSR Single phase Solid state relay DC control DA SSR 3-32VDC to 24-480VAC
| Item Weight | 8.8 ounces |
|---|---|
| Manufacturer | ENPNRMLEH |
| Item model number | ENPNRMLEH |
| Batteries required | No |
| Package Dimensions | 0.39 x 0.39 x 0.39 inches |
