100MHz Function Signal Generator High Precision Digital DDS Dual-Channel Function Signal/Arbitrary Waveform Generator Pulse Signal Source 300MSa/s Frequency Meter VCO Burst

Specification: Plug & Model: US Plug FY6900-100M Material: ABS Sine: 0~100MHz(100M) Sampling Rate: 300MSa/s(100M) Output Amplitude Range: 1mV～25Vpp(100M) Vertical Resolution: 14 bits Waveform Length: 8192 points * 14bits Minimum Pulse Width: 20ns Modulation Type: AM, FM, PM, ASK, FSK, PSK Display: 2.4 inch (320*240), TFT color display Non-Volatile Storage: Can store 64 user-defined arbitrary waveforms, (8K 14bits) * 64 Power: AC100V~240V Item Size: 210 * 195 * 75mm / 8.27 * 7.68 * 2.96in (L*W*H) Item Weight: 611g / 21.56oz Package Weight: 1065g / 37.51oz Package Size: 27 * 21 * 9.5cm / 10.63 * 8.27 * 3.75inPackage List: 1 * DDS Signal Generator 1 * Power Cable 1 * USB Data Cable 1 * BNC-BNC Cable 2 * BNC-Clip Cable

• Adopt the Direct Digital Synthesizer (DDS) technology and provide stable, precise, pure and low distortion signals.

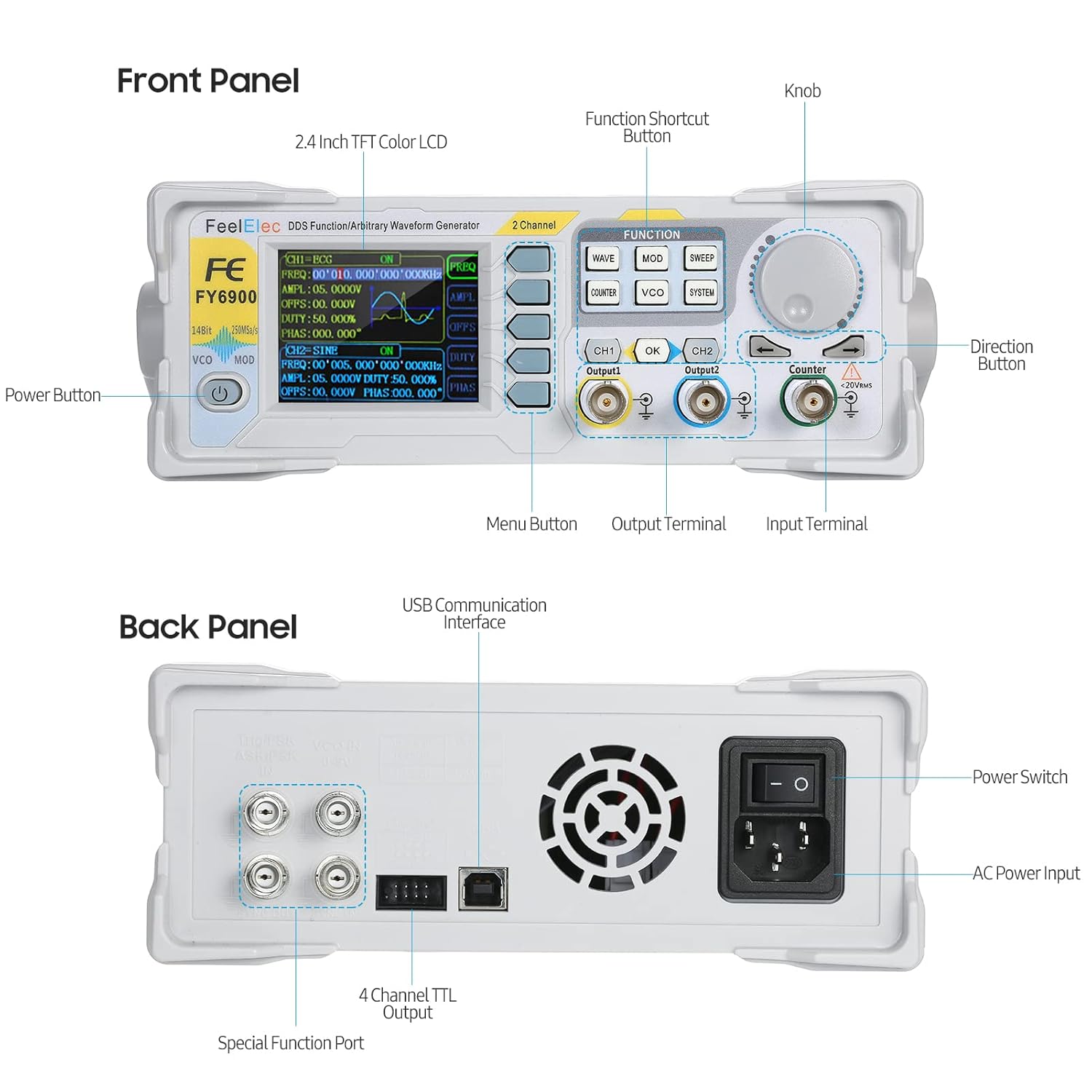

• 2.4 inch TFT color LCD with 320*240 resolution, simultaneously display parameters and graphics of CH1 and CH2.
• Adopt MagicPulse Technology, Low Jitter(RMS)<200ps.
• Enable to store 64 arbitrary waveform data files, each one of waveform storage depth 8192 points * 14bits; (The longer the waveform storage depth, the more detail the waveform is saved, and the signal details can be restored with high precision.)
• Various modulation types: AM, FM, PM, ASK, FSK and PSK modulations.
